Plot Spectra Heatmap

Source: R/plot.R
heat_spectra.Rd

Plot a set of spectra as a heatmap. Each row corresponds to one spectrum, each column to a chemical-shift datapoint, and the signal intensity is color-coded.

If the spectra were simulated (i.e. carry a simpar element in meta), the true peaks are highlighted with thick rectangles spanning x0 +- lambda. If the spectra have additionally been deconvoluted, the rectangles are colored according to whether each peak was correctly identified (green), missed (yellow) or wrongly identified (red, drawn at the position of the deconvoluted peak).

Usage

heat_spectra(
  objs,
  foc_rgn = NULL,
  what = NULL,
  cols = NULL,
  xlab = "Chemical Shift [ppm]",
  ylab = "Spectrum",
  mar = c(4.1, 2.1, 1.1, 0.5),
  y = NULL,
  y_cols = NULL,
  true_x0 = NULL,
  true_col = "darkgreen",
  true_tol = NULL,
  scale_cols = FALSE,
  cex_names = 0.8,
  xaxis_side = 1,
  col_scores = NULL,
  col_sep = NULL,
  row_sep = NULL,
  main = NULL,
  names = NULL,
  ref = NULL,
  ref_col = "red",
  ref_lwd = NULL,
  sparse = FALSE,
  xaxt = "s"
)

Arguments

objs

An object of type spectrum, spectra, decon2, decons2, align or aligns, OR a numeric matrix with chemical-shift values as colnames (rows are spectra). To plot a feature matrix derived from peak areas, use si_mat() and pass the result.

foc_rgn

Numeric vector of length 2 specifying the focus region in ppm (e.g. c(3.55, 3.35)). If NULL (default), the full spectrum is shown.

what

Which signal to plot: "si" (raw), "sup" (superposition of Lorentz curves) or "supal" (aligned superposition). Defaults to a sensible choice based on the input class. Ignored when objs is a matrix.

cols

Character vector of colors used as intensity color palette. Defaults to hcl.colors(64, "YlOrRd", rev = TRUE).

xlab, ylab

Axis labels.

mar

Numeric vector of length 4 specifying the plot margins. Passed to graphics::par(). The right margin is overridden at runtime to fit the spectra names.

y

Optional vector of class labels (one per spectrum). If provided, the spectra names are colored according to the class.

y_cols

Character vector of colors used to color the spectra names by class. Defaults to rainbow(nlevels(as.factor(y))). Ignored if y is NULL.

true_x0

Optional numeric vector of true peak positions (in ppm). If supplied, the x-axis tick labels of columns within true_tol ppm of any true_x0 are drawn in true_col. Useful to highlight known discriminating features in a sparse feature matrix from si_mat().

true_col

Color used for x-axis labels of columns close to a true_x0 value.

true_tol

Numeric tolerance in ppm for matching columns to true_x0. Defaults to half the median column spacing.

scale_cols

If TRUE, scale each column (chemical shift) to a symmetric range before mapping to colours, so per-feature contrasts are comparable.

cex_names

Character expansion factor for the spectrum name labels drawn on the right side of the heatmap. Defaults to 0.8.

xaxis_side

On which side to draw the x-axis: 1 (bottom, default) or 3 (top).

col_scores

Optional numeric vector of length ncol(Z) (after foc_rgn filtering) giving a per-column score (e.g. lasso coefficients or feature importances). When supplied, columns are sorted by col_scores (ascending) and the score is appended in brackets to each x-axis label.

col_sep

Vertical column separators. NULL (default) draws a separator at the sign change of col_scores if given, otherwise none. FALSE disables separators entirely. An integer vector draws separators after the given (post-sort) column indices.

row_sep

Horizontal row separators. NULL (default) draws separators at class changes when y is given, otherwise none. FALSE disables separators entirely. An integer vector draws separators after the given row indices.

main

Optional plot title. Drawn via graphics::title().

names

Controls per-spectrum names drawn on the right side. NULL (default) or TRUE uses the spectrum names. FALSE hides them and shrinks the right margin accordingly. A character vector overrides the labels.

ref

Integer row index (1-based) of a reference spectrum to highlight with a rectangle, or NULL (default) for no highlight.

ref_col

Color of the reference-row rectangle. Defaults to "red".

ref_lwd

Line width of the reference-row rectangle. Defaults to par("lwd").

sparse

If TRUE, render the heatmap as a sparse peak matrix: all cells are zero except at the columns where a peak center sits (picked from lcpar$pcisn / lcpar$pcial / lcpar$pcide, in that priority). The value at a peak column is the Lorentzian peak height A / lambda; collisions on the same column are summed. Ignored when objs is a matrix.

xaxt

Character. "s" (default) draws the x-axis normally; "n" suppresses x-axis ticks, tick labels and xlab.

Value

NULL. Called for side effect of plotting.

Author

2024-2026 Tobias Schmidt: initial version.

Examples

obj <- deconvolute(sim[1:4], sfr = c(3.55, 3.35))
#> 2026-08-09 09:53:17.61 Starting deconvolution (spectra: 4, workers: 1)
#> 2026-08-09 09:53:17.61 Starting deconvolution of sim_01 using R backend
#> 2026-08-09 09:53:17.61 Starting peak selection
#> 2026-08-09 09:53:17.61 Detected 312 peaks
#> 2026-08-09 09:53:17.61 Removing peaks with low scores
#> 2026-08-09 09:53:17.61 Removed 285 peaks
#> 2026-08-09 09:53:17.61 Fitting Lorentz curves (3 iterations)
#> 2026-08-09 09:53:17.61 Finished deconvolution of sim_01
#> 2026-08-09 09:53:17.61 Starting deconvolution of sim_02 using R backend
#> 2026-08-09 09:53:17.61 Starting peak selection
#> 2026-08-09 09:53:17.61 Detected 316 peaks
#> 2026-08-09 09:53:17.61 Removing peaks with low scores
#> 2026-08-09 09:53:17.61 Removed 286 peaks
#> 2026-08-09 09:53:17.61 Fitting Lorentz curves (3 iterations)
#> 2026-08-09 09:53:17.62 Finished deconvolution of sim_02
#> 2026-08-09 09:53:17.62 Starting deconvolution of sim_03 using R backend
#> 2026-08-09 09:53:17.62 Starting peak selection
#> 2026-08-09 09:53:17.62 Detected 333 peaks
#> 2026-08-09 09:53:17.62 Removing peaks with low scores
#> 2026-08-09 09:53:17.62 Removed 308 peaks
#> 2026-08-09 09:53:17.62 Fitting Lorentz curves (3 iterations)
#> 2026-08-09 09:53:17.62 Finished deconvolution of sim_03
#> 2026-08-09 09:53:17.62 Starting deconvolution of sim_04 using R backend
#> 2026-08-09 09:53:17.62 Starting peak selection
#> 2026-08-09 09:53:17.62 Detected 324 peaks
#> 2026-08-09 09:53:17.62 Removing peaks with low scores
#> 2026-08-09 09:53:17.62 Removed 298 peaks
#> 2026-08-09 09:53:17.62 Fitting Lorentz curves (3 iterations)
#> 2026-08-09 09:53:17.62 Finished deconvolution of sim_04
#> 2026-08-09 09:53:17.62 Finished deconvolution 0.014 secs

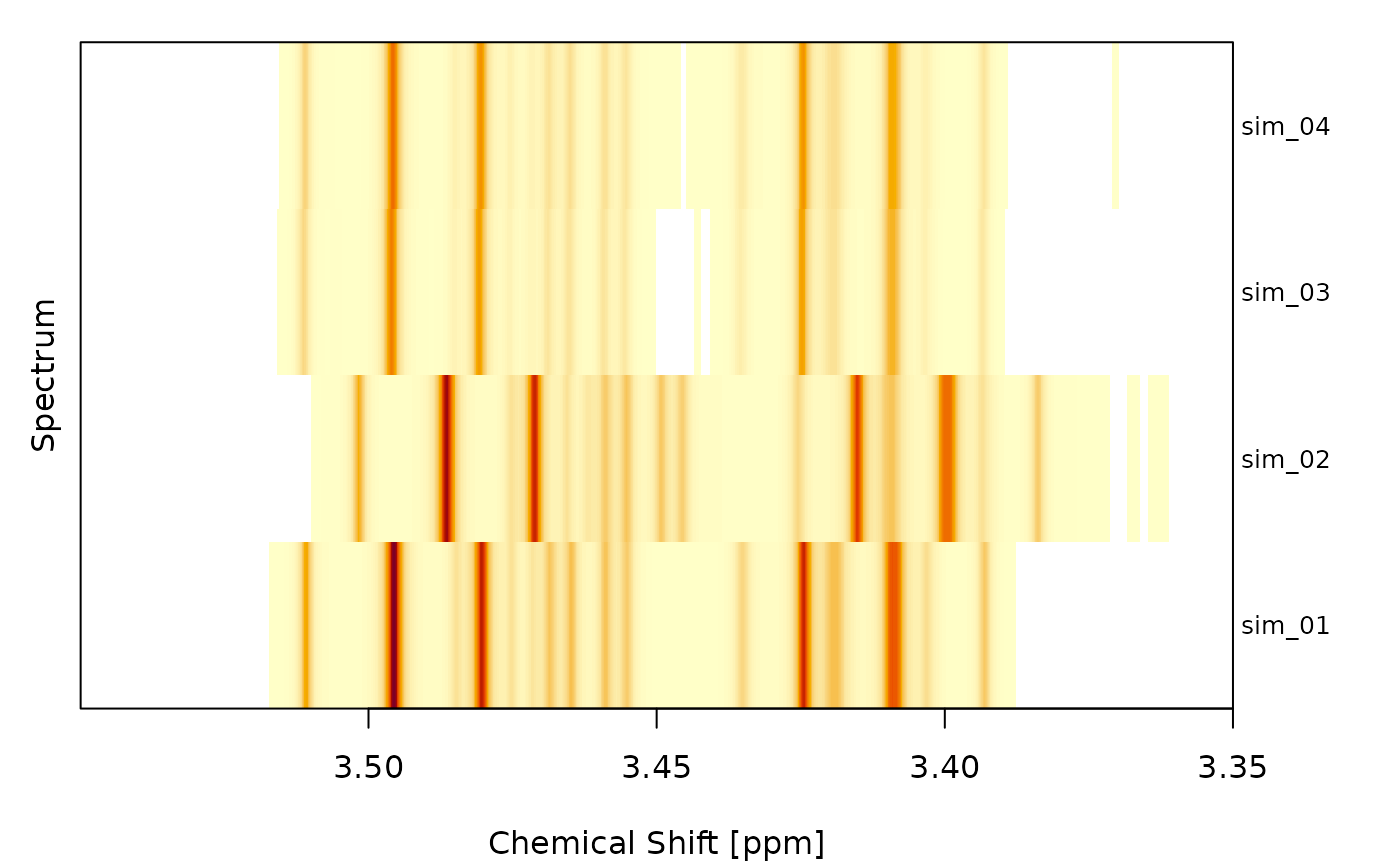

heat_spectra(obj)

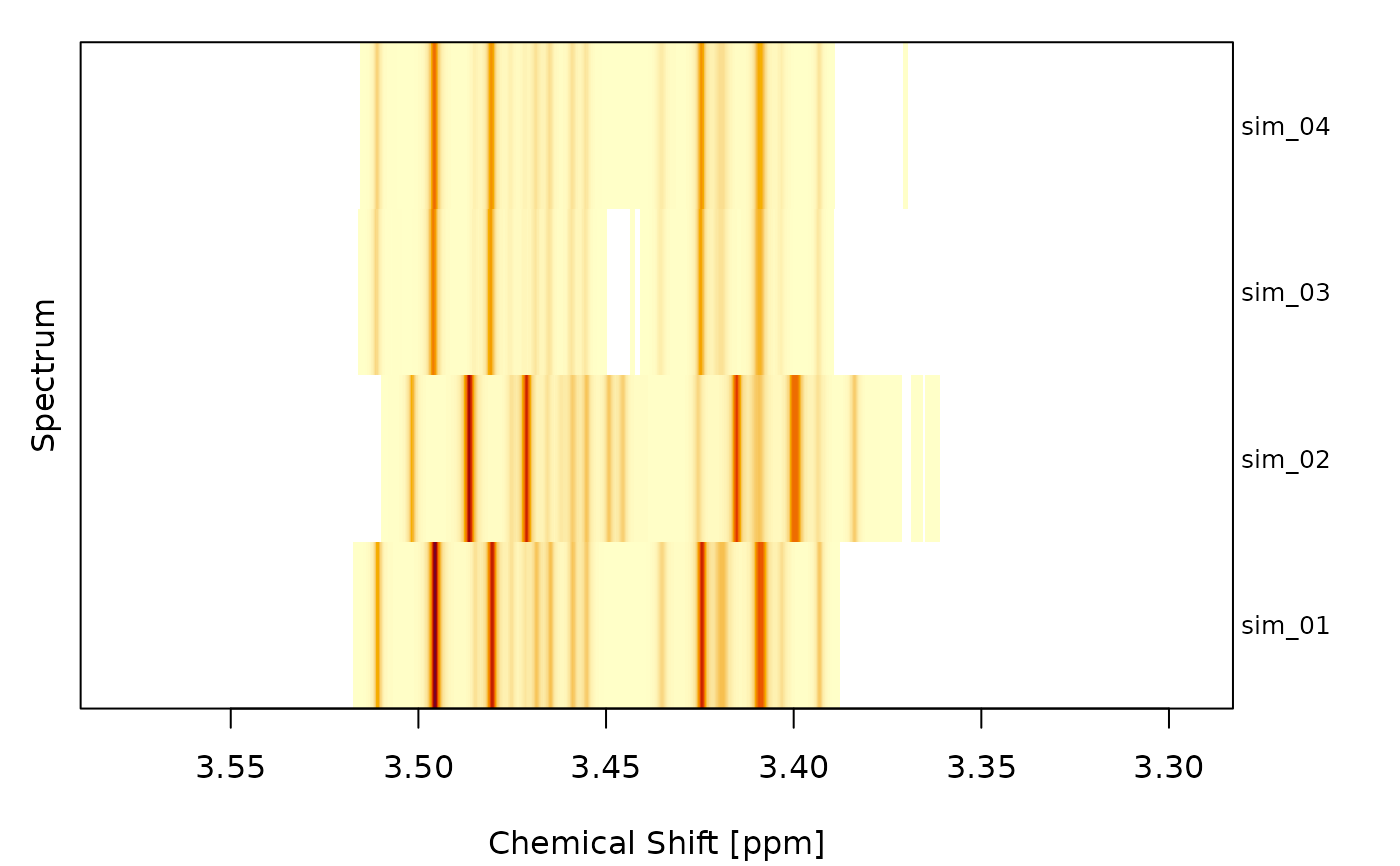

heat_spectra(obj, foc_rgn = c(3.55, 3.35))
